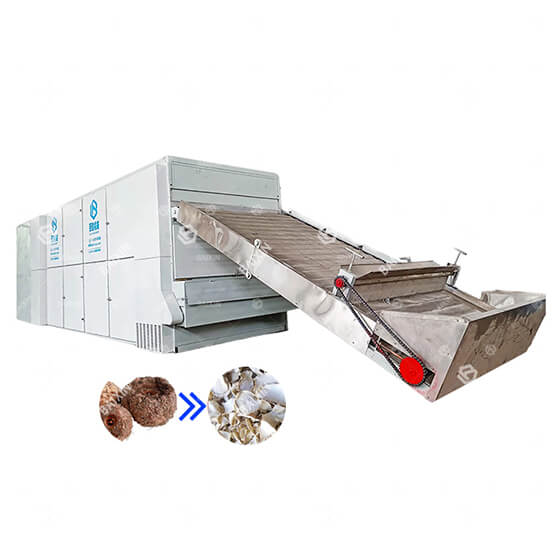

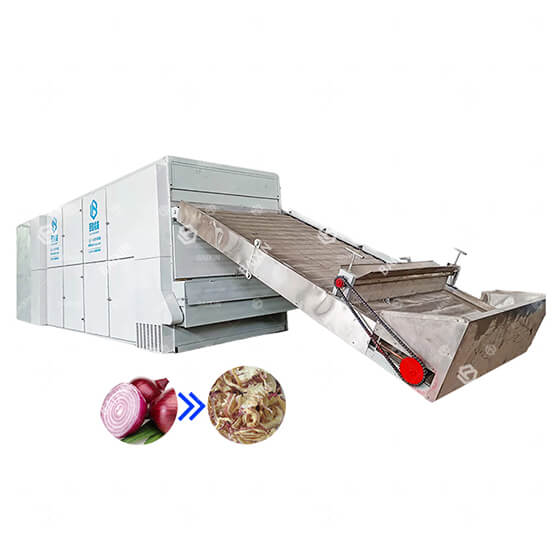

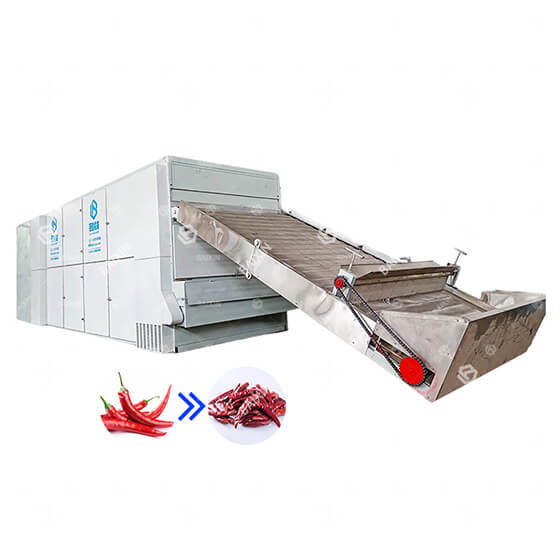

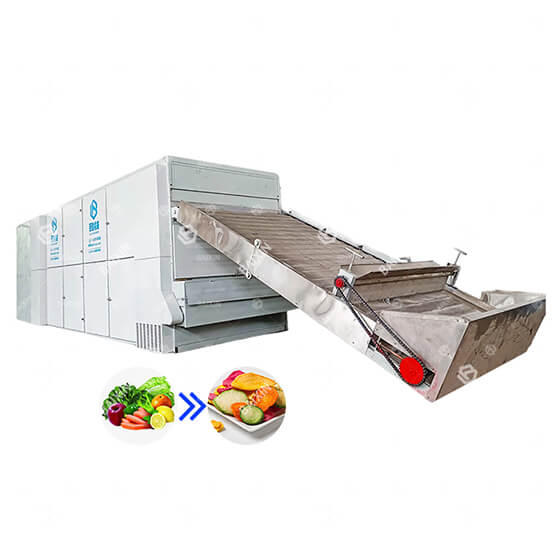

All-in-one multi-layer mesh belt dryer is a kind of continuous production drying equipment, the main heating way has electric heating, steam heating, and hot air heating. Its main working principle is to spread the material evenly in the network. The material is moved in the dryer by the operation of the machine, and the hot air draws out the water vapor of the material. so as to achieve the purpose of drying.
The operation temperature is 40-120 degree centigrade. And the dry cycle is 1-5 hours.
Scallion dryer machine includes a heat source, feed conveyor, air intake system, discharge conveyor, electronic control system, and drying host.
Heat Source System: Provides the thermal energy required for drying. Different heating methods, including electric, natural gas, biomass, and diesel heating, are available according to customer requirements.
Feed Conveyor: Evenly transfers fresh raw material into the drying chamber, ensuring stable feeding and uniform material distribution on the mesh belt.
Drying Host: The core part of the machine, equipped with multi-layer mesh belts that allow continuous drying and efficient utilization of heat.
Air Intake System: The air intake system delivers heated air into the drying chamber. Through optimized air circulation, hot air is evenly distributed across all layers of the mesh belt, improving heat transfer efficiency and ensuring uniform drying.
Discharge Conveyor: Automatically transports the dried raw material out of the machine for subsequent cooling, packaging, or further processing.
Electronic Control System: Equipped with PLC or intelligent control devices to monitor and adjust temperature, airflow, and conveyor speed for stable and efficient operation.
Food Drying Processing Steps
1:Place the material on the conveyor belt of the dryer machine. The material is spread on the feeder by the homogenizing device on the conveyor belt. The stacking thickness of the material is 10-20CM.
2:After the material enters the dryer machine, it runs in an “S” shape in the dryer. The transmission part of the dryer machine adopts a variable-frequency speed-regulating motor, which can control the internal operation time of the drying according to the difference of the water content of the material.
3:The wind speed and wind pressure generated by the hot air blower make the hot air fully and evenly distributed inside the dryer machine. Because the lower pressure is greater than the upper pressure, the hot air naturally moves upward, passing through each layer of the mesh belt, plus the movement and rolling of the material, Make the material fully contact with the hot air, fully heat exchange, and improve the drying efficiency. The dried material will drain through the last layer.
Advantages of All-in-one Multi-layer Mesh Belt Dryer1. Middle and low temperature dehumidification drying
The Baixin customized conveyor mesh belt large material dehydrator drying fruits and vegetables in 50℃-80℃， articles do no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The Baixin customized conveyor mesh belt large material dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in a wholy sealed drying system, hygiene, and energy conservation
Drying in a close sealed system, no fpreign material popution. Efficiency is irrelevant to the external environment, which can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
A graphical touch control system, automatic intelligent control and demands no human duty after setting.
| Continuous mesh belt dryer list | |||||||
| Model | Operation
temperature |
Drying time | Thickness of the material | The size of motor | Capacity | Heat source | Total power |
| BX-2*6M | 40-120℃ | 0.5-5h | 50-200mm | 6*2*2.5 | 200-400kg/h | electricity | 66.5kw |
| natural gas/propane | 12.22kw | ||||||
| coal/wood chips | 13.72kw | ||||||
| steam | 11.22kw | ||||||
| BX-2*9M | 9*2*2.5 | 500-800kg/h | electricity | 79.76kw | |||
| natural gas/propane | 20.12kw | ||||||
| coal/wood chips | 23.12kw | ||||||
| steam | 16.62kw | ||||||
| BX-2*12M | 12*2*2.5 | 1000-1500kg/h | electricity | 153.12kw | |||
| natural gas/propane | 33.12kw | ||||||
| coal/wood chips | 36.12kw | ||||||
| steam | 25.62kw | ||||||
| The continuous drying machine can be equipped according to the user’s requirement and the production demands. | |||||||
