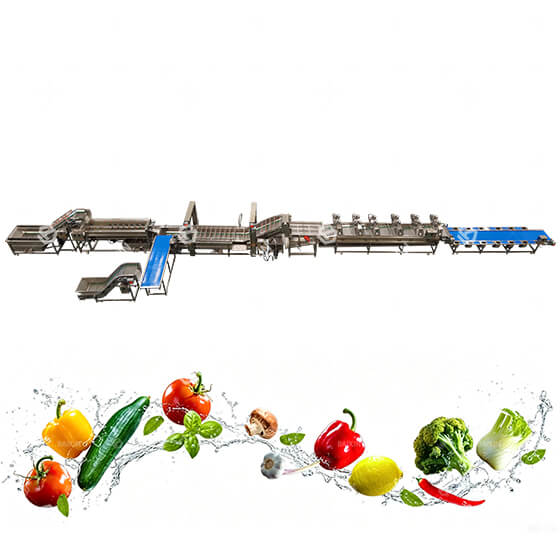

This fruit and vegetable washing processing line is mainly used for the automated washing, peeling, sorting, and drying of various root vegetables such as potatoes, carrots, ginger, sweet potatoes, taro, onions, mangoes, apples, and oranges. The entire line adopts a modular design, achieving continuous and automated production through processes such as lifting, destoning, washing, peeling, drying, and manual sorting. This effectively improves processing efficiency, reduces labor costs, and ensures product hygiene, safety, and processing quality.
The production line is constructed of food-grade stainless steel, with a robust and durable structure that meets food processing hygiene standards. The equipment operates stably and can be customized to meet customer capacity requirements. It is widely used in clean vegetable processing plants, central kitchens, food processing enterprises, and agricultural product deep processing bases.

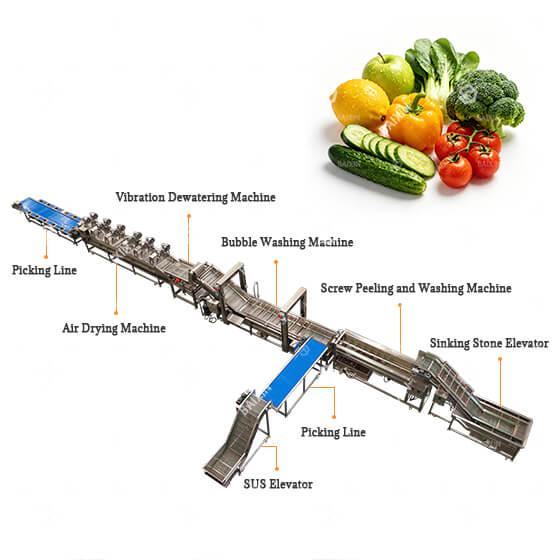

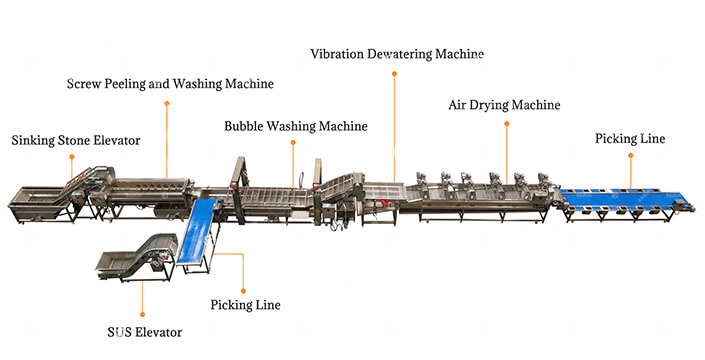

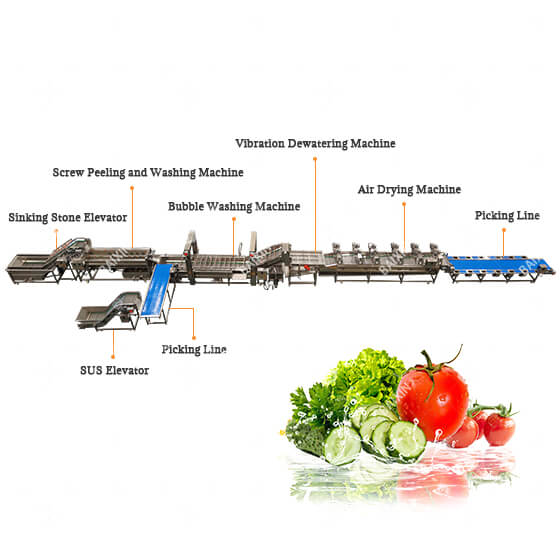

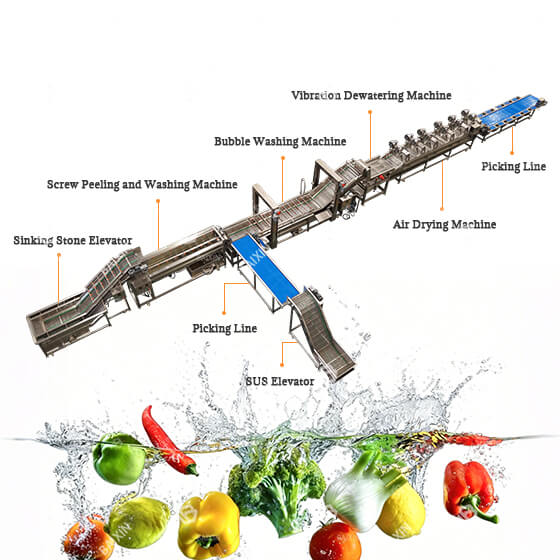

1. Sinking Stone Elevator ：The Sinking Stone Elevator is designed to remove stones, sand, and other heavy impurities while conveying raw materials to the next processing stage. It helps protect downstream equipment and improves overall cleaning efficiency.
2. Screw Peeling and Washing Machine：This machine combines peeling and washing functions in one unit, effectively removing dirt and outer skin from root vegetables. It is suitable for potatoes, carrots, ginger, sweet potatoes, and similar products.
3. SUS Elevator：The SUS Elevator transports products smoothly between processing stages, ensuring continuous production flow. Made of food-grade stainless steel, it is hygienic, durable, and easy to clean.
4. Picking Line：The Picking Line allows operators to inspect and remove defective products, foreign materials, and remaining impurities. It helps improve product quality and consistency.

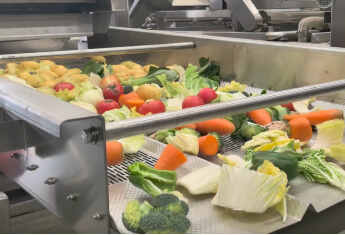

5. Bubble Washing Machine：The Bubble Washing Machine uses air bubbles and circulating water to gently yet thoroughly clean fruits and vegetables. It effectively removes dirt and contaminants without damaging the product surface.
6. Vibration Dewatering Machine：This machine removes excess surface water through vibration during product conveying. It reduces the workload of the air-drying process and improves production efficiency.
7. Air Drying Machine：The Air Drying Machine uses multiple high-pressure air blowers to remove residual water from the product surface. It prepares products for packaging and helps extend shelf life.
8. Picking Line ：The final Picking Line is used for quality inspection and grading before packaging. It ensures that only qualified products proceed to the final packing stage.
1. The entire production line automates conveying, washing, draining, and drying, significantly reducing manual labor and increasing production efficiency and capacity.
2. Combining multiple processes such as destoning, spiral washing, and bubble washing, it effectively removes dirt, sand, and surface impurities, ensuring product cleanliness and hygiene.
3. Constructed with 304 stainless steel, it meets food processing requirements, is corrosion-resistant, easy to clean, and guarantees food safety.
4. This production line can be customized with additional modules such as ozone sterilization, brush cleaning, spray cleaning, metal detection, and automatic weighing and packaging to provide a complete solution for deep processing of fruits and vegetables.
| 1000kg/h Fruit and Vegetable Washing Line | ||
| Machine Name | Power(kw) | Size(mm) |
| Washing Machine | 6.6 | 6000*1200*1300 |
| Peeling Machine | 4.37 | 3400*900*1450 |
| Picking Line | 0.75 | 5000*800*900 |
| Air Drying Machine | 16.6 | 6000*1200*1600 |
| Cutting Machine | 1.1 | 950*800*950 |
| 500kg/h Fruit and Vegetable Washing Line | ||
| Machine Name | Power(kw) | Size(mm) |
| Washing Machine | 3.75 | 2500*1000*1300 |
| Peeling Machine | 1.5 | 1600*850*800 |
| Picking Line | 0.75 | 3000*800*900 |
| Air Drying Machine | 10.1 | 4000*1200*1600 |
| Cutting Machine | 1.1 | 950*800*950 |
| Support customization according to customer requirements. | ||
