Henan Baixin Machinery Equipment Co., Ltd.

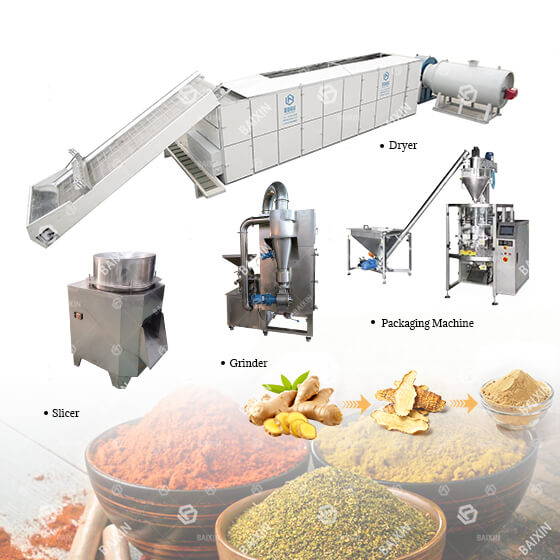

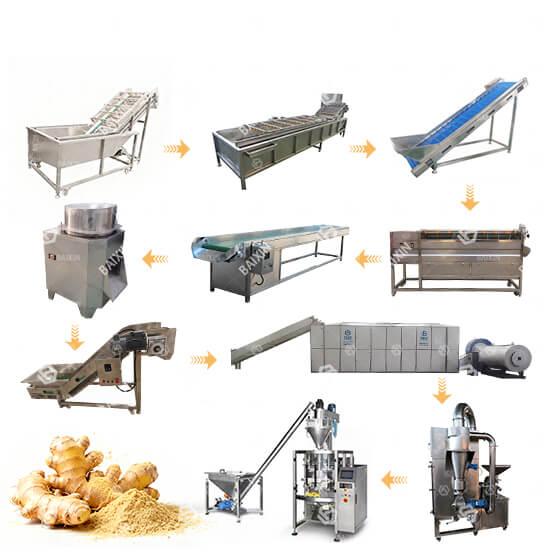

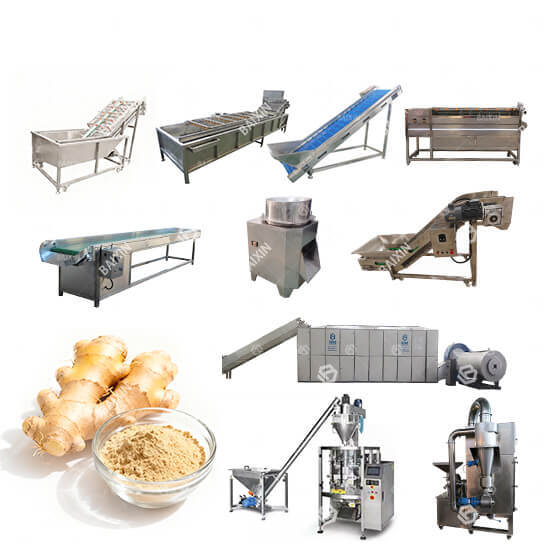

The ginger processing line uses ginger as raw material and processes ginger into ginger powder through processing techniques such as cleaning, peeling, slicing, drying, and grinding. Meet the culinary needs of different households, restaurants, and food processing plants.
Processing ginger into ginger powder can increase the added value of ginger in the ginger planting industry, and reduce the ginger loss and storage and transportation costs caused by ginger price fluctuations. This is the best choice for the ginger business!
Ginger cleaning machine: It is used to clean the dirt, dust, and other impurities attached to the surface of ginger root. The ginger is rolled, washed, and transported under the action of high-pressure water flow and powerful air bubbles, and then sent to the next process.
Ginger peeler : For cleaning and removing the epidermis. The specially designed screw feeding structure is adopted to realize fully automatic work.
Ginger slicer: The thickness of ginger slices is uniform, and the slice thickness can be adjusted as needed.
Ginger air dryer: Effectively remove the moisture on the surface of ginger slices after cleaning, greatly shorten the drying cycle, suitable for assembly line operation.
Ginger dryer: Adopts multi-layer moving stainless steel mesh belt, automatic loading, and unloading, saving a lot of labor costs. Flexible heat source selection: Coal, wood chips, natural gas, diesel, propane, electricity, etc.
Ginger grinding machine: Grind dried ginger slices to a fineness of 10-120 mesh. The ginger grinder is air-cooled or water-cooled and can work continuously for a long time.
Ginger powder packing machine: Generally speaking, the ginger powder business requires automatic ginger powder packaging equipment. The ginger powder packaging machine has a PLC control system, which is intelligent and controllable and can be quickly adjusted according to customer packaging requirements. Packaging weight and quantity are automatically adjusted.
Advantages of Ginger Processing Line1: Can be customized:
Configure different production lines according to customer output requirements.
The ginger processing line is fully automatic and semi-automatic, and customers can choose according to their own needs.
2: Easy to operate:
The ginger production line is easy to install and can be used after connecting to the power supply. It is reliable to use and easy to disassemble.
3: Gingeri powder of high quality:
The dryer adopts medium and low temperature drying. After drying, the original color and nutrients of ginger can be completely retained. The equipment is made of stainless steel, in line with food machinery standards.
4:Flexible heat source selection of dryer: Coal, wood chips, natural gas, diesel, propane, electricity etc.
5: Wide range of applications:
Most of the machines in the line are not only suitable for ginger, but also for other fruits and vegetables.

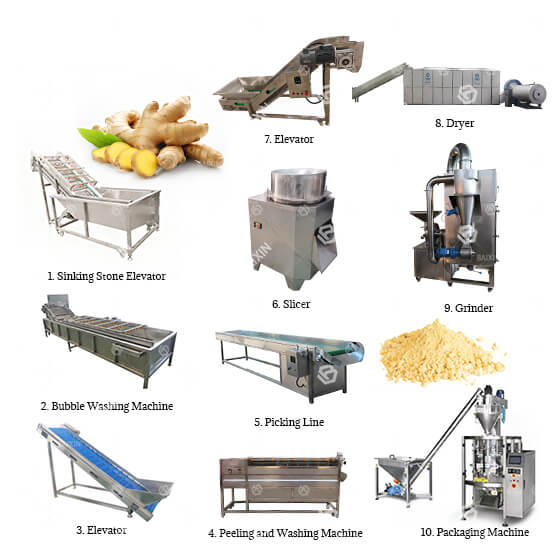

| Automatic Ginger Processing Line | ||||
| Number | Name | Power | Size | Output |
| 1 | Cleaning hoist | 0.37KW | 3200*1050*2500mm | 1000kg/h |
| 2 | Bubble cleaning machine | 3.37KW | 3000*1020*1350mm | 1000kg/h |
| 3 | Hoist | 0.55KW | 1500*800*1600mm | 1000kg/h |
| 4 | Cleaning and peeling machine | 2.75KW | 3050*700*1600mm | 1000kg/h |
| 5 | Picking table | 0.37KW | 3000*740*1100mm | 1000kg/h |
| 6 | Slicer | 1.1KW | 690*560*880mm | 1000kg/h |
| 7 | Hoist | 0.55KW | 1500*800*1600mm | 1000kg/h |
| 8 | Dryer | 20.12KW | 9000*2000*2500mm | 800-1000kg/h |
| 9 | Grinder | 15KW | 1200*1000*2000mm | 500kg/h |
| 10 | Packing Machine | 3.5KW | 3000*1500*2600mm | 30-60 packs/min |
| The ginger processing line can be equipped according to the user’s requirement and the production demands. | ||||
BAIXIN is engaged in a wide range of food machinery business, we provide the best quality machines and solutions to global users, including food processing machinery such as fruit and vegetable washing machines, fruit and vegetable cutting machines, dryers, quick freezers, packaging machines, snack fryers and production lines . We provide not only professional machines and services, but also the right solution for your business. For the benefit of our customers, we baixin people research and sell machines according to users’ habits and preferences. We continuously improve our service levels, listen to our customers, and provide upgraded machines and solutions according to the market.
