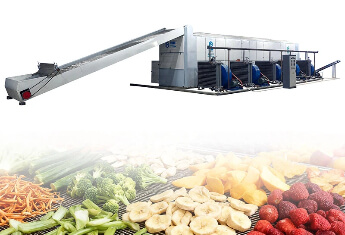

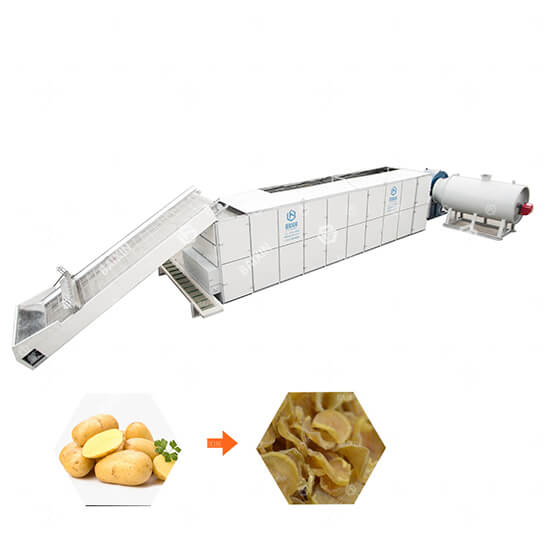

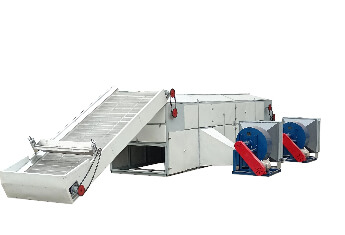

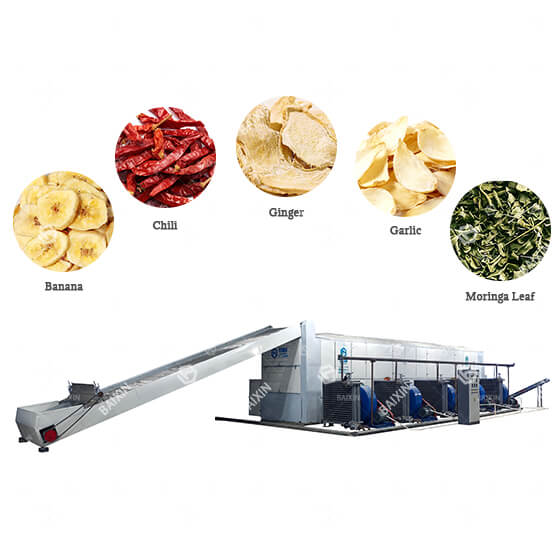

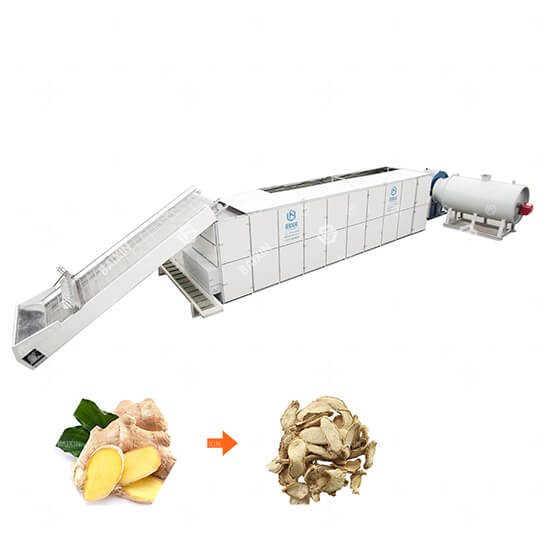

Ginger Dryer Machine is a continuous drying equipment designed for spices, herbs, cassava, fruits, and other agricultural products. It uses hot air circulation technology to remove moisture efficiently while maintaining the natural color, flavor, and quality of the material.

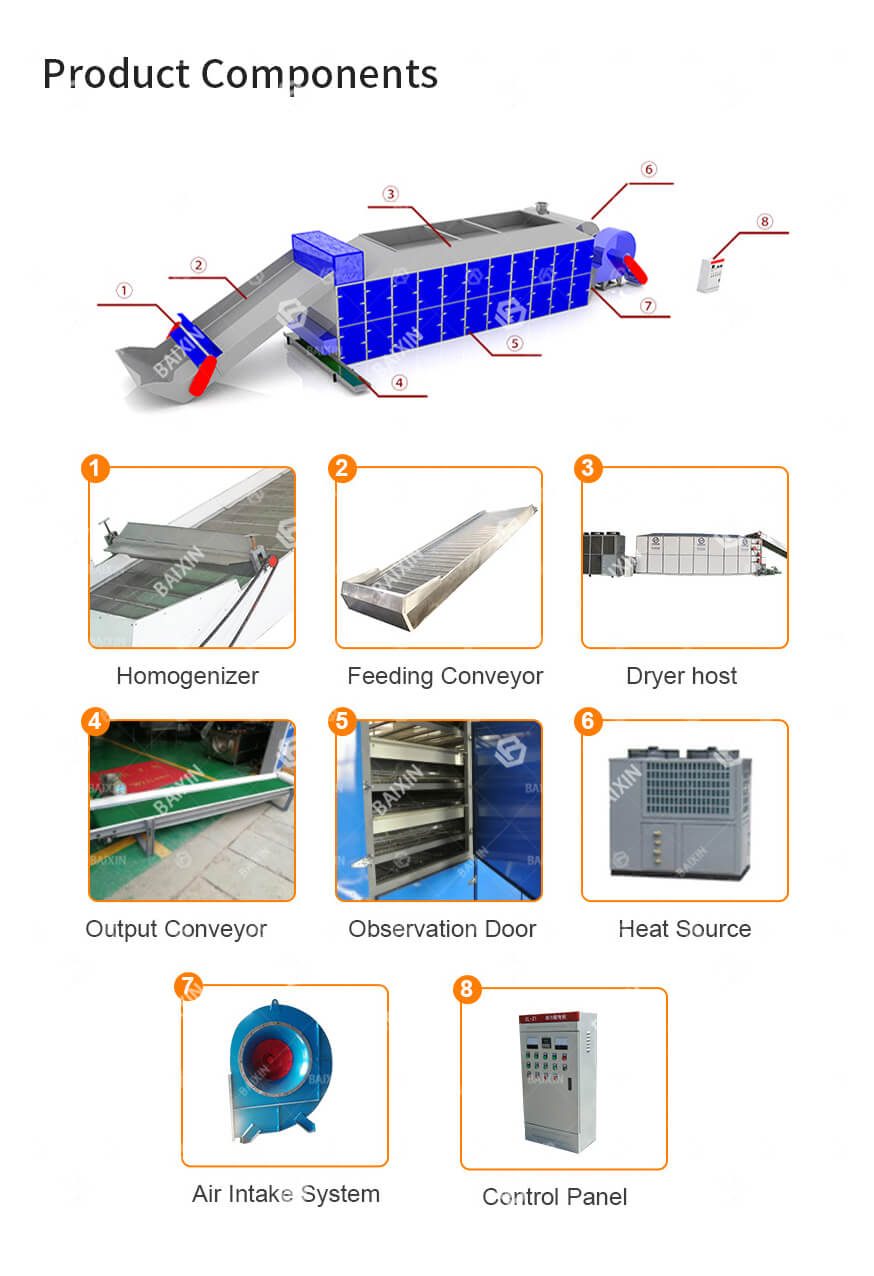

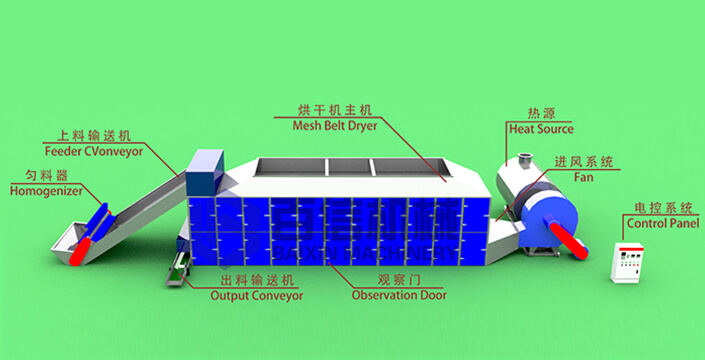

Ginger dryer machine includes a heat source, feed conveyor, air intake system, discharge conveyor, electronic control system, and drying host.
Heat Source System: Provides the thermal energy required for drying. Different heating methods, including electric, natural gas, biomass, and diesel heating, are available according to customer requirements.
Feed Conveyor: Evenly transfers fresh raw material into the drying chamber, ensuring stable feeding and uniform material distribution on the mesh belt.
Drying Host: The core part of the machine, equipped with multi-layer mesh belts that allow continuous drying and efficient utilization of heat.
Air Intake System: The air intake system delivers heated air into the drying chamber. Through optimized air circulation, hot air is evenly distributed across all layers of the mesh belt, improving heat transfer efficiency and ensuring uniform drying.
Discharge Conveyor: Automatically transports the dried raw material out of the machine for subsequent cooling, packaging, or further processing.
Electronic Control System: Equipped with PLC or intelligent control devices to monitor and adjust temperature, airflow, and conveyor speed for stable and efficient operation.
Ginger Drying Processing Steps
1:Place the ginger on the conveyor belt of the ginger dryer machine. The ginger is spread on the feeder by the homogenizing device on the conveyor belt.The stacking thickness of ginger is 10-20CM.
2:After the ginger enters the ginger dryer machine, it runs in an “S” shape in the dryer. The transmission part of the ginger dryer machine adopts a variable-frequency speed-regulating motor, which can control the internal operation time of the drying according to the difference of the water content of the ginger.
3:The wind speed and wind pressure generated by the hot air blower make the hot air fully and evenly distributed inside the ginger dryer machine. Because the lower pressure is greater than the upper pressure, the hot air naturally moves upward, passing through each layer of the mesh belt, plus the movement and rolling of the ginger, Make the ginger fully contact with the hot air, fully heat exchange, and improve the drying efficiency. The dried ginger will drain through the last layer.
Advantages of Ginger Dryer Machine1. High capacity: The ginger dryer machine has continuous automatic production, fast dehydration speed, short drying time, and high output.
2. High quality: Ginger can be maintained full of shape, bright, color.
3. Clean and sanitation: The entire ginger drying process is completed in a closed box, free from external pollution.
4. Intelligent and controllable: High degree of automation equipment, simple operation. Drying area, air pressure, air flow, drying temperature, and belt running speed can be adjust.
5. Wide usage: Can be used for material from any field.
6. Flexible heat source selection: Coal,wood chips,natural gas,diesel,propane,electricity etc.
7. Flexible mobility, simple or without installation.

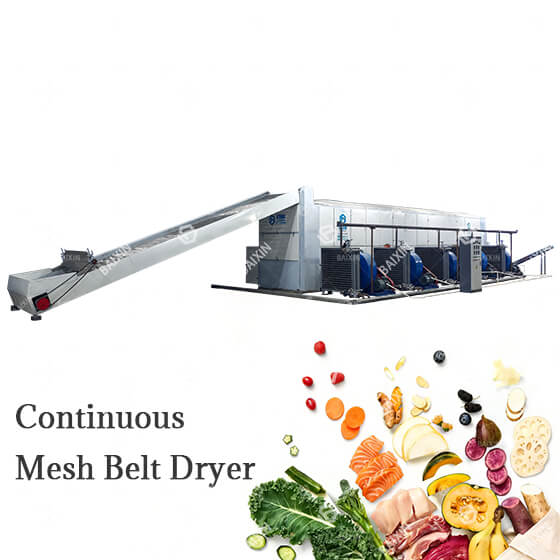

| Continuous mesh belt dryer list | |||||||
| Model | Operation
temperature |
Drying time | Thickness of the material | The size of motor | Capacity | Heat source | Total power |
| BX-2*6M | 40-120℃ | 0.5-5h | 50-200mm | 6*2*2.5 | 200-400kg/h | electricity | 66.5kw |
| natural gas/propane | 12.22kw | ||||||
| coal/wood chips | 13.72kw | ||||||
| steam | 11.22kw | ||||||
| BX-2*9M | 9*2*2.5 | 500-800kg/h | electricity | 79.76kw | |||
| natural gas/propane | 20.12kw | ||||||
| coal/wood chips | 23.12kw | ||||||
| steam | 16.62kw | ||||||
| BX-2*12M | 12*2*2.5 | 1000-1500kg/h | electricity | 153.12kw | |||
| natural gas/propane | 33.12kw | ||||||
| coal/wood chips | 36.12kw | ||||||
| steam | 25.62kw | ||||||
| The continuous drying machine can be equipped according to the user’s requirement and the production demands. | |||||||
