Henan Baixin Machinery Equipment Co., Ltd.
Baixin has 17 years of experience in customized solutions for potato processing lines. Since its establishment, Baixin has been committed to providing the best potato processing solutions to users around the world. We provide one-stop turn-key project and make different solutions for different demands.
1. We are a professional manufacture to produce french fries making machines, potato chips making machines.
2.Process capacity including input capacity and output capacity and Process flow can be customized according to your need.
3.About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.
4.Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry.
5.All equipment in the production line is made of 304 stainless steel.
6.Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one.
7.The size of French fries and the thickness of potato chips are adjusted.
8.We can design floor plan of complete line you need depending on your area’ s size.
| Single Machine Function of Banana Chips Production Line | |||

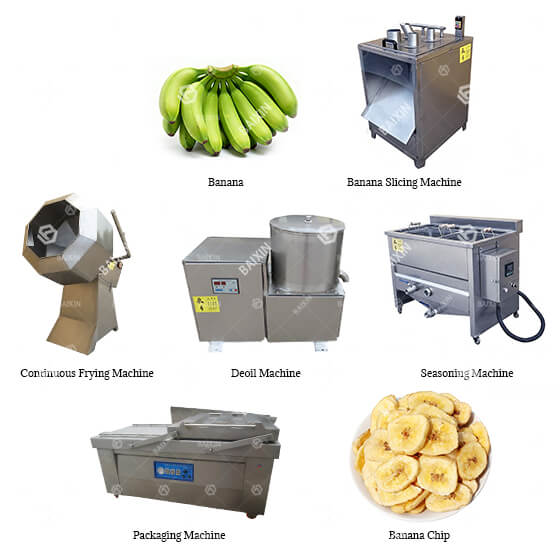

| No. | Machine Name | Function | Advantage |
| 1 | Banana Slicing Machine | Cutting the banana into slices, sizes adjustable from 1-5mm | 1.Banana chips thickness 1-5mm can be adjustable. 2.Cutting surface is smooth without damage. |
| 2 | Frying Machine | For quick frying the banana slices around few minutes in 180°oil | 1.Automatic lifting system, easy to clean. 2.Oil filter and recycling system to automatically and continuously filter the oil residue to extend the service life. 3.Electric or gas heating. |
| 3 | Deoiling Machine | Remove the surface oil | The de-oil time is adjustable. |
| 4 | Seasoning Machine | Spread the seasoning evenly over each banana chip | 1.With spice tank, the flow of spice adjustable. 2. You can add additives any you want even liquid such as oil, water etc. 3. Seasoning time can be controlled. |
| 5 | Automatic Weighing Packing Machine | For packing the finished banana chips | It can fill Nitrogen automatically, automatic weighing, automatic sealing and automatic packing. |
| 50kg/h Banana Chips Line List (Heat Source: Electricity) | ||||
| No. | Name | Size(mm) | Power(Kw) | Qty(Set) |
| 1 | Banana Slicing Machine | 710*660*1085mm | 0.75 | 1 |
| 2 | SUS Elevator | 2000*700*1600mm | 0.75 | 1 |
| 3 | Frying Machine | 1900*1600*1700mm | 60 | 1 |
| 4 | Vacuum Oil Filter | 600*600*1000mm | 2.2 | 1 |
| 5 | Add Oil Machine | 600*600*1900mm | 6 | 1 |
| 6 | Vibration Deoiling Machine | 1800*1000*1300mm | 0.36 | 1 |
| 7 | SUS Elevator | 2000*700*1600mm | 0.75 | 1 |
| 8 | Seasoning Machine | 1500*800*1600mm | 1.5 | 1 |
| 9 | SUS Elevator | 2000*700*1600mm | 0.75 | 1 |
| 10 | Weighing Packing Machine | 900*1250*2000mm | 0.9 | 1 |
| Total | 73.96 | 10 | ||
| Can be customized according to client requirements. | ||||
BAIXIN is engaged in a wide range of food machinery business, we provide the best quality machines and solutions to global users, including food processing machinery such as fruit and vegetable washing machines, fruit and vegetable cutting machines, dryers, quick freezers, packaging machines, snack fryers and production lines . We provide not only professional machines and services, but also the right solution for your business. For the benefit of our customers, we baixin people research and sell machines according to users’ habits and preferences. We continuously improve our service levels, listen to our customers, and provide upgraded machines and solutions according to the market.
