Baixin has 17 years of experience in customized solutions for potato processing lines. Since its establishment, Baixin has been committed to providing the best potato processing solutions to users around the world. We provide one-stop turn-key project and make different solutions for different demands.
1. We are a professional manufacture to produce french fries making machines, potato chips making machines.
2.Process capacity including input capacity and output capacity and Process flow can be customized according to your need.
3.About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.
4.Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry.
5.All equipment in the production line is made of 304 stainless steel.
6.Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one.
7.The size of French fries and the thickness of potato chips are adjusted.
8.We can design floor plan of complete line you need depending on your area’ s size.
|

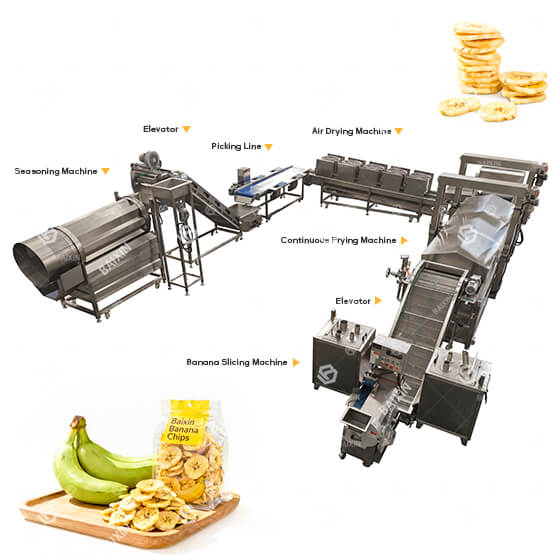

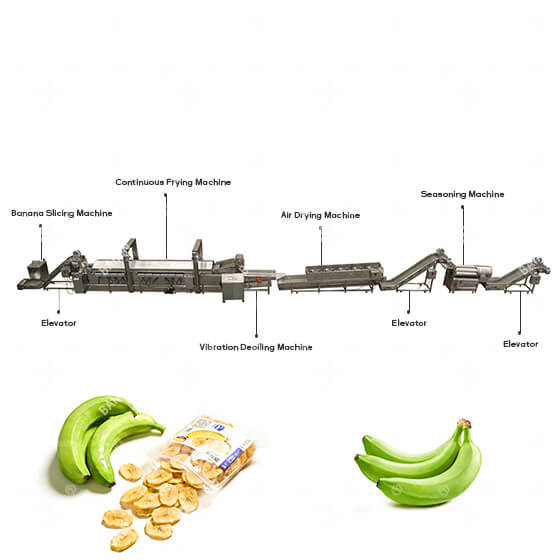

Single Machine Function of Banana Chips Production Line |
|||
|
No. |
Name | Function |
Feature |
| 1 | Slicing machine | Slicing the peeled plantains uniformly. | 1: Uniformly slicing. 2:Thickness adjustable.3:Multi-functional, can cut different dimensions of material (plantain, cassava, yam, radish, chili, tomato, plantain, onion etc.) |
| 2 | SUS Elevator | For elevating and conveying the chips into next machine. | 1: 304 stainless steel. 2: With invertor motor and speed can be adjusted. |
| 3 | Continuous Frying Machine | The fryer can fry the plantain chips quickly in high temperature 160-180℃ cooking oil for 3-5 minutes, giving the plantain chips the ideal taste and texture.
|
1: With automatic frying, exhausting system, hoist lifting system, heating system, oil filling system, temperature control system etc.
2: Double mesh belt transmission to avoid the plantain chips floating. 3: With an oil storage tank , Oil tank is used to store the oil after working for cleaning the frying machine. It can pump oil back to the oil tank from fryer. It also can automatic fill the oil to fryer during frying. 4: For the chains lifting system, it is with brake device which will stop the lifting or down when the electricity is power off suddenly. 5: Lampblack exhausting system Exhaust cover is made of 2 mm stainless steel SUS304 2B . Two fume Exhaust pipes , made of 304 stainless steel. Axial flow fan installed on the end of each exhaust 6: Automatic residue scraping system “L” type sediment scraping belt installed on the bottom of the pot body . 7: Control System PLC in Siemens. 8: Speed is adjustable by frequency control. 9: Oil filter function :When the equipment is working, the oil inside the frying machine first enters the coarse filter under the action of internal and external pressure difference, and then enters the fine filter through the circulation pump. Under the action of fine filter paper, the ultrafine particles and impurities in the oil are filtered out. The oil flowing out from the oil outlet meets the requirements and is connected to the frying machine through pipelines to complete. 10: Equipped with safety alarm equipment and carbon dioxide fire extinguisher tank. 11: Parameters are precisely adjusted to easily control frying temperature, time and other parameters。 12: German brand Heraeus temperature sensor. 13: The thickness of the insulation layer is 70-100mm, and the rock wool material can effectively prevent heat loss. 14: Siemens PLC, Siemens motor, Schneider electric components. |
| 4 | Vacuum Oil Filter | Efficiently filter impurities to ensure the purity of oil and increase oil service life.
ss steel 304 |
1: The vacuum oil filter has a high filtration accuracy. It uses a multi-layer filtration system to effectively remove tiny impurity particles. 2: Prevent oil oxidation and extend oil service life. 3: Simple operation, high stability, meet the requirements of environmental protection and energy saving. |
| 5 | Add Oil Machine | Pre-heat the fresh oil and add it into fryer when needed. | The built-in heating tube has a preheating function. |
| 6 | Vibration Deoiling Machine | Can remove chips surface oil quickly. It reduce the chips moisture content in a short period of time by using the principle of vibration. | 1:ESTA brand vibration bracket imported from Turkey.
2:4mm patterned stainless steel plate, the equipment is stable and durable, preventing French chips from sticking. |
| 7 | Air Drying Machine | Quickly remove oil from the surface of plantain chips. |
1: Remove surface oil of plantain chips quickly. Using high-speed and strong airflow to blow away oil droplets on the surface of chips and reduce the oil content of chips effectively. 2: Air dry evenly with flat mesh belt design. 3: There is a water tray at the bottom to collect oil. 4: The height of the fan can be adjusted. |
| 8 | Seasoning Machine | Spread the seasoning evenly over each chip. | 1:Good uniformity: The precise seasoning delivery system and efficient mixing device can ensure that the seasoning is evenly distributed on the product.
2:With spice tank: the flow of spice adjustable.Various flavors, compatible with a variety of seasonings.You can add additives any you want even liquid such as oil, water etc. 3:Health and safety: its sealed structure design and food-grade contact parts effectively prevent pollution of seasonings and products. 4:Stable quality and unique design structure ensure that the shape of the chips is not damaged during the rolling process. 5:Seasoning time and speed can be adjusted. |
| 9 | Diverter Conveyor | Diverter materials to the next equipment.
|
1:Transport plantaines to the next equipment separately. 2:With invertor motor and speed can be adjusted. 3:Food grade PVC material. |
| 10 | SUS Storage Silo | Store finished products in large quantities and adjust the production rhythm.. | 1:It can ensure the continuous production and stabilize the production process. 2:SUS steel material, strong and durable. Can also use stainless steel. |
| 11 | Automatic Weighing Packing Machine | Plantain chips packaging machines can package plantain chips according to preset weight or quantity. | 1:Precise quantitative packaging, small error range, and adjustable packaging weight.
2:Various packaging forms: Various packaging forms can be realized, such as the common three-side seal, four-side seal, back seal, etc. 3:Can adapt to different packaging materials, such as plastic film, aluminum foil bag, etc. 4:High degree of automation, can automatically complete a series of packaging operations such as feeding, metering, packaging, sealing, etc., reducing manual labor. 5:Including Z-type loader, combined weighing head, 304 stainless steel platform, back sealing host, coding machine, discharge elevator, etc. 6:Servo motor + PLC automatic control system. 7:Can be equipped with nitrogen filling device. |
| 12 | Metal Detector | Automatic check if the bags have metal. |
1:Japan brand ENC probe. 2:Stainless steel 304 in 2mm. 3:Japan food grade PVC belt. 4:PLC controller panel in China brand . |
| 13 | Material Sorting Tray | Automatic adjust the chips in bag. |
1:Motor in Siemens beide brand 2:Electric component in CHNT brand. 3:Stainless steel 304 thickness 2mm |
| 14 | Box Sealing Machine |
Automatic sealing box ,save labor working. |
1:Motor in Siemens beide brand 2:Electric component in CHNT brand. 3:Stainless steel 304 thickness 2mm |
| 15 | Platform |
Checking and maintaining the machines Made on site |
1:Stainless steel 304 thickness 2-5mm 2:Frame use in stainless steel tube in 80*40*3/60*60*2/50*50*2mm |

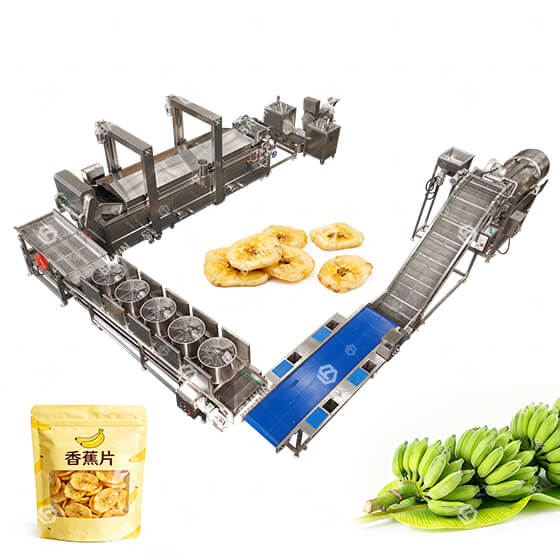

| 1000kg/h Banana Chips Line List (Heat Source: Gas) | ||||
| No. | Name | Size | Power(Kw) | Qty(set) |
| 1 | Chips slicing machine | 710*660*1085mm | 0.75 | 6 |
| 2 | SUS elevator | 3000*1500*1700mm | 0.75 | 1 |
| 3 | SUS diverter conveyor | 3000*1500*1700mm | 0.75 | 2 |
| 4 | Vibrating distributor | 1800*1500*1300mm | 0.36 | 4 |
| 5 | Continuous frying machine–gas | 12000*2100*2200mm | 4 | 4 |
| 6 | Vacuum oil filter | D600 | 2.2 | 4 |
| 7 | Add oil machine | 600*600*1900mm | 6 | 4 |
| 8 | Vibration deoiling machine | 1800*1000*1300mm | 0.36 | 2 |
| 9 | Air drying machine | 12000*1500*1700mm | 11.2 | 1 |
| 10 | SUS elevator | 2200*700*1500mm | 0.75 | 1 |
| 11 | Seasoning machine | 4000*900*1600mm | 2.2 | 1 |
| 12 | SUS diverter conveyor | 28000*800*1000mm | 1.5 | 1 |
| 13 | SUS storage silo | 1000L | 4 | |
| 14 | Automatic weighing packing machine | 4500*2700*4200mm | 6 | 8 |
| 15 | Automatic carton sealing line | 24000*1200*1600mm | 11 | 1 |
| 16 | Platforms | 1 | ||
| Total | 132.36 | 45 | ||
| Can be customized according to client requirements. | ||||
