Baixin has 17 years of experience in customized solutions for potato processing lines. Since its establishment, Baixin has been committed to providing the best potato processing solutions to users around the world. We provide one-stop turn-key project and make different solutions for different demands.
1. We are a professional manufacture to produce french fries making machines, potato chips making machines.
2.Process capacity including input capacity and output capacity and Process flow can be customized according to your need.
3.About plant scale, we can do full automatic line (finished capacity 100kg/h to 2000kg/h), it can improve production efficiency and save manpower, it is very suitable for the factory and business with a certain scale and starting business.
4.Small scale semi-automatic production line(finished capacity 30kg/h to 300kg/h) and its scale is not so big like full automatic line and ask less manpower, its cost is lower than full automatic line, its production method is very flexible, and suitable for a small-scale business or a company that has just begun to enter the industry.
5.All equipment in the production line is made of 304 stainless steel.
6.Heating method: Electric heating, Gas heating or Electricity heating and gas heating both in one.
7.The size of French fries and the thickness of potato chips are adjusted.
8.We can design floor plan of complete line you need depending on your area’ s size.

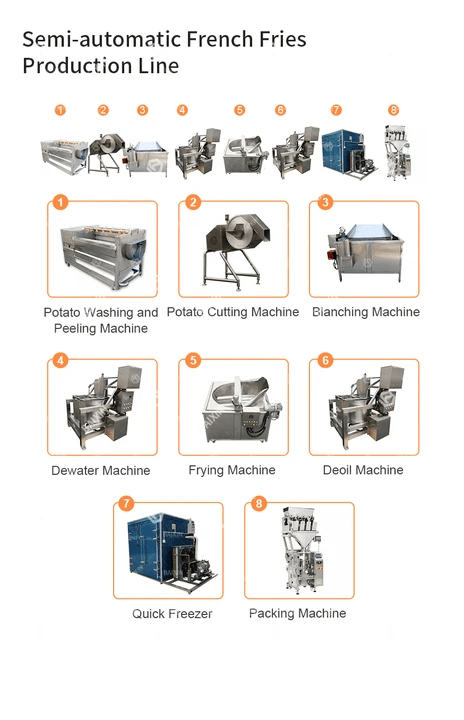

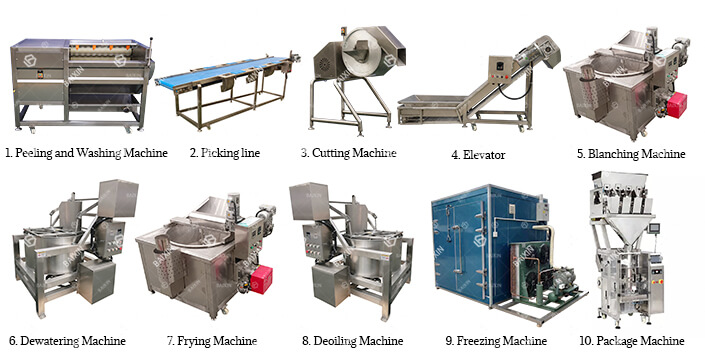

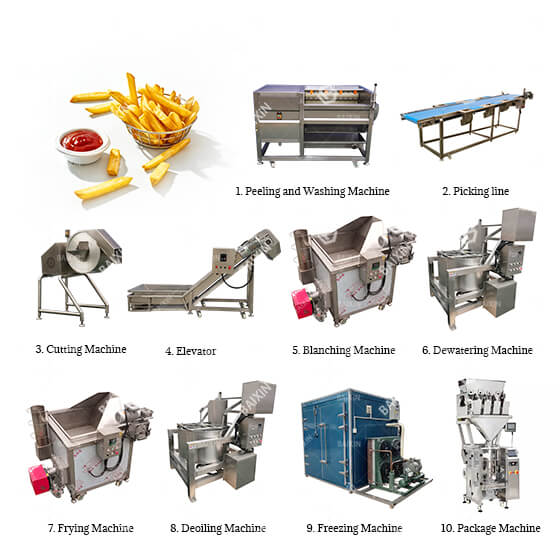

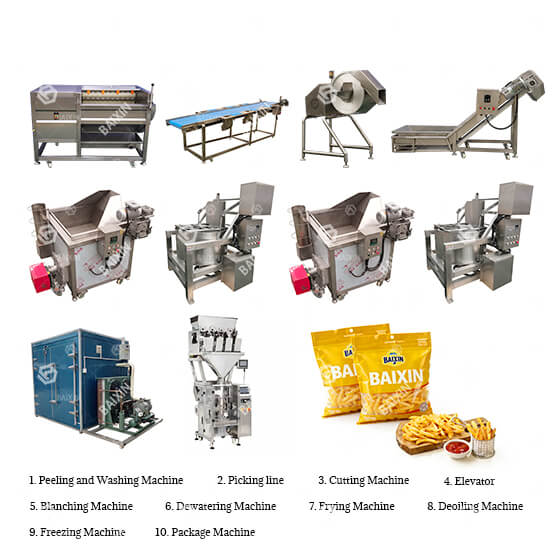

| Single Machine Function of French Fries Production Line | |||
| No. | Name | Function | Features |
| 1 | Screw Peeling and Washing Machine | The screw and rollers effectively remove the potato skin during the rotation process, and use the flushing effect of water to clean the potatoes. | 1)We use high quality emery roller,even old potatoes that are hard to peel can be peeled well. 2)Emery roller is not easy to lose sand and has a long service life. 3)Spraying system to clean the potatoes. 4)Spiral design to make sure automatic discharging. 5)The discharge speed can be adjusted. 6)The whole machine is made of 304 stainless steel. 7)Frequency conversion start-up ensures long-term stable use of the equipment. Equipped with water tank and filter to prevent impurities from entering the workshop drainage pipe and causing blockage. |
| 2 | Picking Line | Unqualified potatoes are manually picked out and transported to the next process. | 1)Siemens frequency converter, mesh belt speed is adjustable. 2)Siemens motor, Schneider electrical components. Belt material can be customized. |
| 3 | French Fries Cutting Machine | Cut the peeled potatoes into fries shapes according to the preset size specifications. | 1)The strips’ size such as 7*7mm, 8*8mm, 9*9mm,10*10mm and customized made can be changed by adjusting the blade. 2)Cutting surface is smooth without damage. 3)The whole machine is made of 304 stainless steel, sanitary and easy to clean. The blade is made of Japanese 440C steel, which has strong stability and long service life. |
| 4 | Blanching Machine | By high temperature treatment, the enzymes in the fries are inactivated which prevent the fries from changing color during subsequent processing and storage. The internal cell structure of the fries is changed which makes the fries more crispier and tastier. | 1) It can effectively protect original vivid color of the potato strips/potato chip. It can kill a large number of microorganisms and extend the shelf life effectively. 2) You can add additives during blanching process. 3) The parameters are adjusted precisely, and the blanching temperature, time and other parameters can be easily controlled. 4) Heraeus German brand temperature sensor. 5) With belt lifting device for easy clean the bottom of tank. 6) The thickness of the insulation layer is 70-100mm, and the rock wool material can prevent heat loss effectively. 7) Siemens PLC, Siemens motor, Schneider electrical components. |
| 5 | Vibration Dewatering Machine | Through vibration to remove the surface water and also to transport the fries uniformly to the next machine | The de-water time is adjustable. |
| 6 | Frying Machine | For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life | 1.Automatic lifting system, easy to clean. 2.Double mesh belt transmission to avoid the chips floating. 3.Oil filter and recycling system to automatically and continuously filter the oil residue to extend the service life. 4.Electric or gas heating. |
| 7 | Vibration Deoiling Machine | Through high frequency vibrating to achieve deoiling purpose, and also to convey the fries uniformly to next machine | The de-oil time is adjustable. |
| 8 | Freezing Machine | Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt, frozen products and prevent adhesion, achieve IQF | Customized according to customer needs |
| 9 | Automatic Weighing Packing Machine | For packing the finished frozen french fries | It can fill Nitrogen automatically, automatic weighing, automatic sealing and automatic packing. |
| 100kg/h Frozen French Fries Line List (Heat Source: Electricity) | ||||
| No. | Name | Size | Power（kw） | Qty(set) |
| 1 | Washing and peeling machine | 1400*850*800mm | 1.1 | 1 |
| 2 | Cutting machine | 950*900*1000mm | 1.1 | 1 |
| 3 | Blanching machine | 1200*700*950mm | 24 | 1 |
| 4 | Dehydrator | 1000*500*700mm | 1.1 | 1 |
| 5 | Frying machine | 1200*1000*1320mm | 40 | 1 |
| 6 | Deoiling machine | 1000*500*700mm | 1.1 | 1 |
| 7 | Freezing machine | 3500*2200*2200mm | 17 | 1 |
| 8 | Sealing machine | 1060*470*380mm | 0.75 | 1 |
| Total | 86.15 | 8 | ||
| Can be customized according to client requirements. | ||||
BAIXIN is engaged in a wide range of food machinery business, we provide the best quality machines and solutions to global users, including food processing machinery such as fruit and vegetable washing machines, fruit and vegetable cutting machines, dryers, quick freezers, packaging machines, snack fryers and production lines . We provide not only professional machines and services, but also the right solution for your business. For the benefit of our customers, we baixin people research and sell machines according to users’ habits and preferences. We continuously improve our service levels, listen to our customers, and provide upgraded machines and solutions according to the market.
